Small wood pellet machine with factory price ZLPM250 manufacturer from China shandong hengmeibetter ennovation equipment co,.ltd

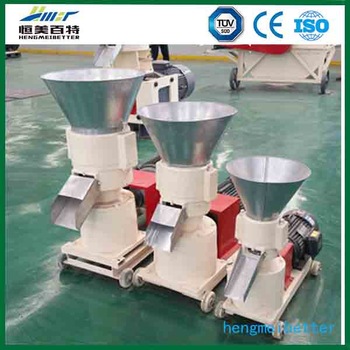

Small wood pellet machine with factory price

Price:	1500.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZLPM250

Production Capacity: 300-500kg/h

Delivery Date: 7-15 days after receiving t...

Power: 15kw

voltage: 380 or customized

Means of Transport: Ocean

Packing: Air cushion packaging insid...

Brand Name: HMBT

capacity: 100-300

After-sales Service Provided: Engineers available to serv...

Removable small multi-pellet mill

300-600 kgs saw dust mini pellets machine

Product Description

Our company produces the ZLPM series pellet mill, which absorb elite of Germany

KAHL pellet mill, the heart parts "die" and "rollers" are made by high alloy steel wear

resistant material according to different materials, have long lifetime. The transmission

parts adopt auto differential, drum juncture or universal joint drive. Little noise, low

energy consumption, high efficiency and easy operation the series pellet mills were

developed elaborately to be our patent products. The products are applied to large-sized, medium-sized and small bio-mass energy fuel plants, wood working factory, municipal refuse cleaning plant, organic

fertilizer plant, chemical plant, animal feed plant and fishery etc. With low investment,

quick effective, no risk, our pellet mills are the most ideal compact shaped equipments.

Product parameters

Parameters of saw dust mini pellets machine

Product Name	Model	Power	Capacity	Pellet Diameter	Dimension L×W×H	Weight
Product Name	Model	(KW)	(T/H)	(MM)	(MM)	(T)
Flat Die Pellet Mill Machine	ZLPM105	2.2	0.06-0.1	4-6	600×400×500	0.042
	ZLPM120	3	0.07-0.1/0.01-0.03		1150×300×550	0.105
	ZLPM150	7.5	0.1-0.3/0.02-0.05		1280×480×820	0.2
	ZLPM200	11	0.3-0.5/0.05-0.1		1300×500×850	0.26
	ZLPM250	15	0.4-0.7/0.1-0.3		1400×600×1000	0.56
	ZLPM280	22	0.5-0.8/0.2-0.4	4-8	1720×600×1200	0.7
	ZLPM300 A/B	22/30	0.6-1/0.3-0.5	4-8	1800×670×1600	0.76
	ZLPM2-350	37	0.5-1	4-12	1800×850×1300	1.5
	ZLPM2-450	45	1-1.5	4-12	1800×850×1400	1.8

Advantage

Features of saw dust mini pellets machine

1. Raw material moisture requirement is 10-15% before enter into Pellet Machine.

2. The diameter of pellet (final size) could be 3mm-10mm, according to customer's need.

3. The length of pellets can be adjusted by change cutter's position.

4. Widely use to press fuel /feed/fertilizer pellets.

Application

Application of saw dust mini pellets machine

1.saw dust mini pellets machine mainly used for feed and animal husbandry industry,

cattle, horses, sheep, chicken, pig, rabbit, duck, goose,fish, ostriches, camels, dove

small plant breeding and feed factory.

2.saw dust mini pellets machine can be used as animal manure, sludge, biogas residue

as organic fertilizer, inorganic fertilizer,compound fertilizer and other fertilizer granules.

3.saw dust mini pellets machine be used as a biomass energy particles.

Working Principles

The working principle of saw dust mini pellets machine

The material enters the granulating chamber by mould, rotating friction press wheel

rotation, so that the material extruded into mould hole, business secret into a cylindrical

bar, after cutting the outlet of cutting, forming particles, get out of granulating chamber.
